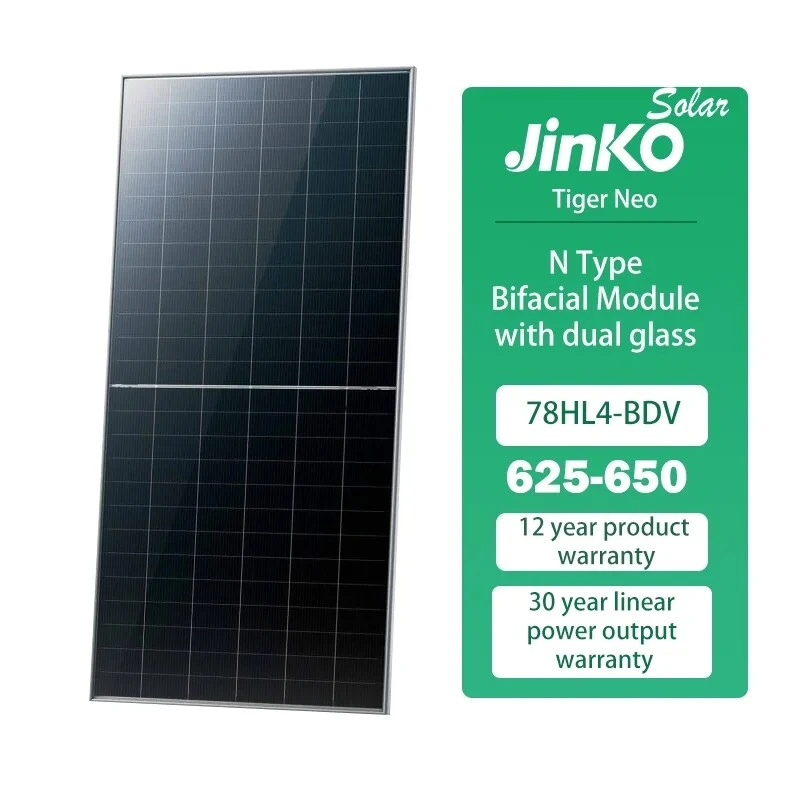

Jinko Tiger Neo 78HL4-BDV
Jinko Tiger Neo 78HL4-BDV
Model NO:78HL4-BDV 625-650 Watt
Cell Type: N-type Mono-crystalline
Weight:34.0 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2465*1134*30mm
Trademark:Jinko solar
Origin:China
sales1@artes-cn.com


MECHANICAL DATA
Cell Type N-type Mono-crystalline
No. of Cells156(2*78)
Dimensions2465*1134*30 mm
Weight34.0 kg
Front Glass2.0 mm, Anti-reflection Coating
Back Glass2.0 mm, Heat Strengthened Glass
FrameAnodized aluminium alloy
J-BoxIP68 rated
Protection ClassClass II
lEC Fire TypeClass C
Output Cables4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)625w630w635w640645650
Power Tolerance0- +3%
Opt. Operating Voltage (Vmp)47.5447.747.8648.0248.1748.33
Opt. Operating Current (Imp)13.1513.2113.2713.3313.3913.45
Open Circuit Voltage (Voc)56.9557.0857.2157.3457.4757.6
Short Circuit Current (Isc)13.813.8613.9213.9814.0414.1
Module Efficiency22.36%22.54%22.72%22.90%23.07%23.25%
