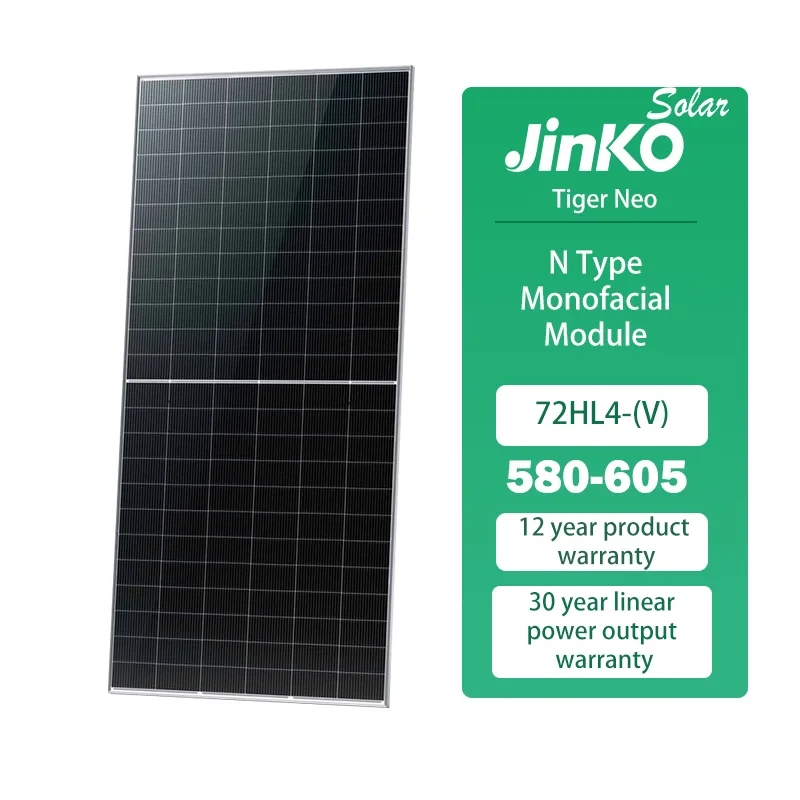

Jinko Tiger Neo 72HL4-(V)
Jinko Tiger Neo 72HL4-(V)
Model NO:72HL4-(V) 580-605 Watt
Cell Type: N-type Mono-crystalline
Weight:27.0 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:2278*1134*30mm
Trademark:Jinko solar
Origin:China
sales1@artes-cn.com


MECHANICAL DATA
Cell Type N-type Mono-crystalline
No. of Cells144(2*72)
Dimensions2278*1134*30 mm
Weight27.0 kg
Front Glass3.2mm, Anti-reflection Coating, High Transmission, Low Iron, Tempered Glass
FrameAnodized aluminium alloy
J-BoxIP68 rated
Protection ClassClass II
lEC Fire TypeClass C
Output Cables4.0 mm²(+): 400 mm, (-): 200 mm or Customized Length


ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)580W585W590W595W600W605W
Power Tolerance0- +3%
Opt. Operating Voltage (Vmp)43.3543.5343.7143.8844.0644.23
Opt. Operating Current (Imp)13.3813.4413.513.5613.6213.68
Open Circuit Voltage (Voc)52.3152.4752.6352.7952.9553.11
Short Circuit Current (Isc)14.0114.0714.1314.1914.2514.31
Module Efficiency22.45%22.65%22.84%23.03%23.23%23.42%
