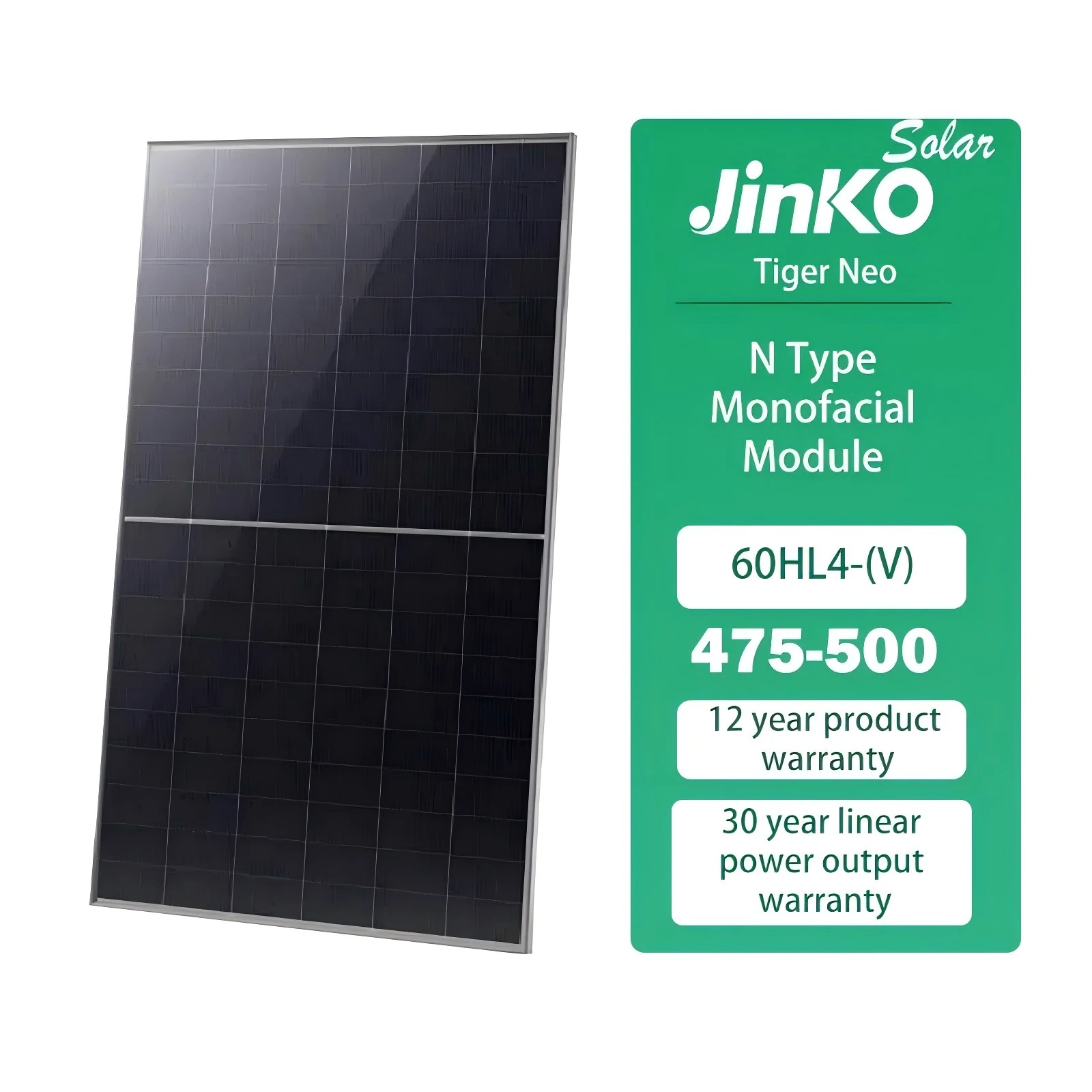

Jinko Tiger Neo 60HL4-(V)
Jinko Tiger Neo 60HL4-(V)
Model NO:60HL4-(V) 475-500 Watt
Cell Type: N-type Mono-crystalline
Weight:22.5 kg
Transport Package:Wooden Pallet and Carton Packing
Specification:1903*1134*30mm
Trademark:Jinko solar
Origin:China
sales1@artes-cn.com
MECHANICAL DATA
Cell Type N-type Mono-crystalline
No. of Cells120(6*20)
Dimensions1903*1134*30 mm
Weight22.5 kg
Front Glass3.2mm, Anti-Reflection Coating,High Transmission, Low Iron, Tempered Glass
FrameAnodized aluminium alloy
J-BoxIP68 rated
Fire RatingClass C
Output CablesTUV 1*4mm(+): 400 mm, (-): 200 mm or Customized Length

ELECTRICAL DATE(STC)

Nominal Max. Power (Pmax)475w480w485w490w495w500w
Power Tolerance0- +3%
Opt. Operating Voltage (Vmp)35.8836.0636.2536.4336.6236.79
Opt. Operating Current (Imp)13.2413.3113.3813.4513.5213.59
Open Circuit Voltage (Voc)43.4543.643.7643.9144.0744.21
Short Circuit Current (Isc)13.7713.8513.9314.0114.0914.17
Module Efficiency21.98%22.21%22.44%22.67%22.90%23.17%
