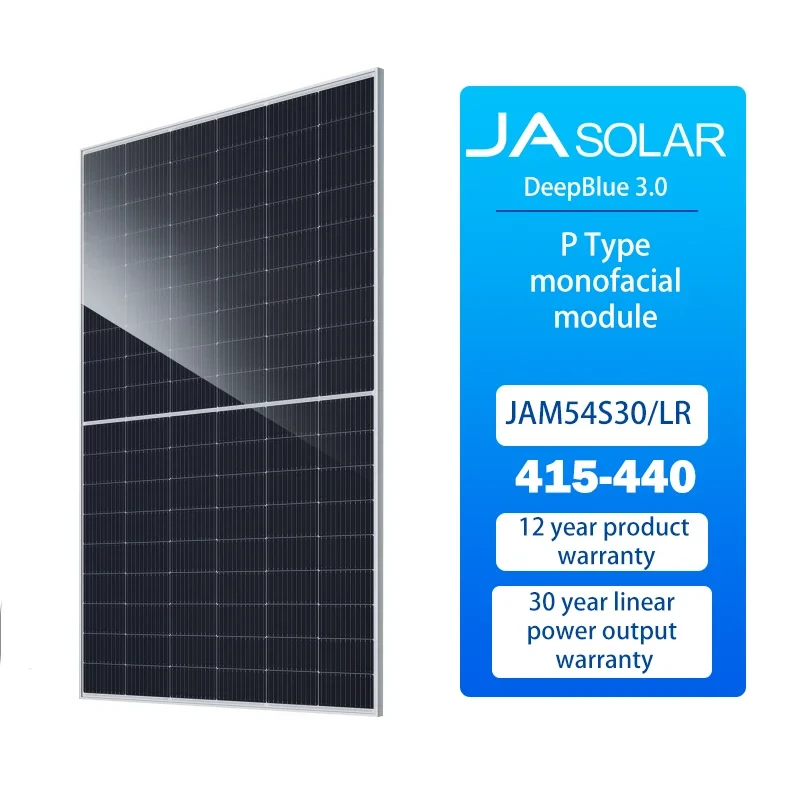

JA Solar JAM54S30LR
JA Solar JAM54S30LR
415W 420W 425W 430W 435W 440W JA Deepblue 3.0 Series P Type Monofacial Module, with higher power generation better LCOE, better temperature coefficient, lower LID and better low irradiance response.
sales1@artes-cn.com


MECHANICAL DATA
CellMono
Weight20kg
Dimensions1762±2mm*1134±2mm*35±1mm
Cable Cross Section Size4mm²(IEC)，12 AWG(UL)
No. of cells108(6*18)
J-BoxIP68, 3 diodes
ConnectorQC 4.10-351/ MC4-EVO2A


ELECTRICAL DATE(STC)
Rated Maximum Power(Pmax)[W]415420425430435440
Power Tolerance0~+3%
Open Circuit Voltage(Voc) [V]37.5537.7337.9138.0938.2738.45
Maximum Power Voltage(Vmp) [V]30.9231.1131.331.4931.6831.86
Short Circuit Current(lsc) [A]14.1714.2514.3314.4214.514.58
Maximum Power Current(lmp) [A]13.4213.513.5813.6513.7313.81
Module Efficiency[%]20.80%21.00%21.30%21.50%21.80%22.00%
