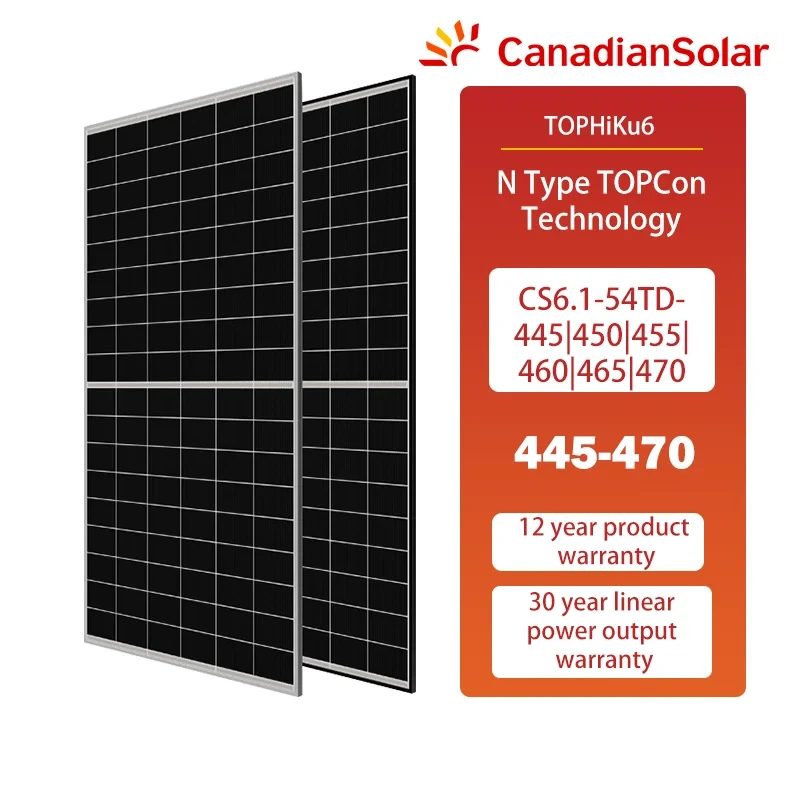

Canadian Solar TOPHiKu6 445-470w
Canadian Solar TOPHiKu6 445-470w
Model NO: TOPHiKu6 445-470W
Cell Type: TOPCon cells
Weight:22.7 kg (50.0 lbs)
Cables:4.0 mm² (IEC), 12 AWG (UL)
Transport Package:Wooden Pallet and Carton Packing
Specification:1800*1134*30mm
Trademark:Canadian solar
Origin:China
sales1@artes-cn.com


MECHANICAL DATA
Cell Type TOPCon cells
Cell Arrangement108 [ 2*(9*6) ]
Dimensions1800*1134*30 mm (89.7*44.6*1.18 in)
Weight22.7 kg (50.0 lbs)
Front Glass1.6 mm heat strengthened glass with anti-reflective coating
Back Glass1.6 mm heat strengthened glass
FrameAnodized aluminium alloy
J-BoxIP68,3 bypass diodes
Cable4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A
Per Pallet35 pieces
Per Cotainer(40' HQ)840 pieces

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)445w450w455w460w465w470w
Power Tolerance0-10 w
Opt. Operating Voltage (Vmp)32.8 V33.0 V33.2 V33.4 V33.6 V33.8 V
Opt. Operating Current (Imp)13.59 A13.66 A13.72 A13.78 A13.85 A13.91 A
Open Circuit Voltage (Voc)38.7 V38.9 V39.1 V39.3 V39.5 V39.7 V
Short Circuit Current (Isc)14.48 A14.55 A14.61 A14.69 A14.77 A14.86 A
Module Efficiency21.80%22.00%22.30%22.50%22.80%23.00%
