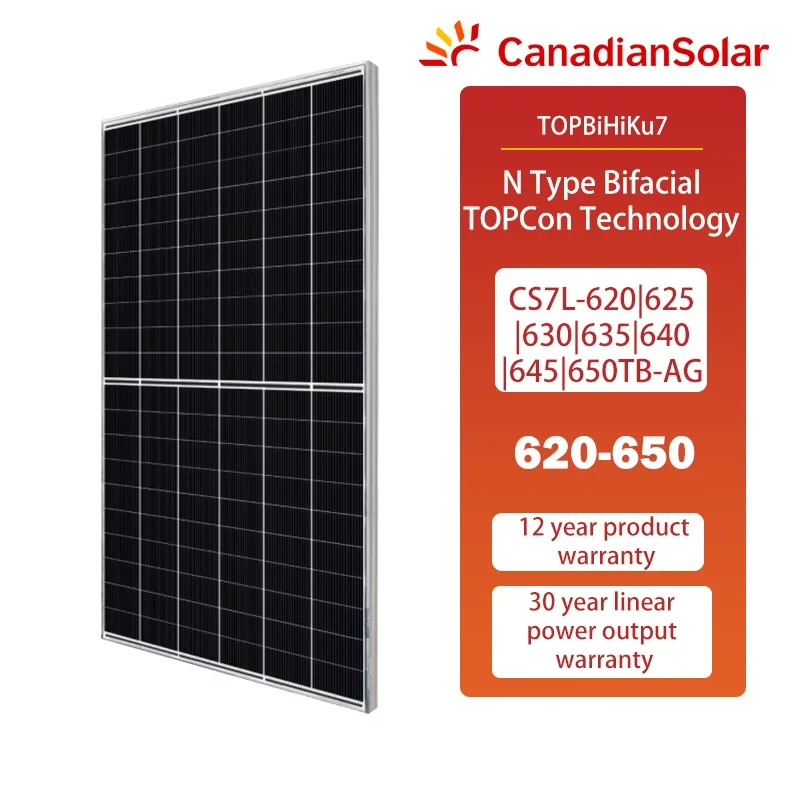

Canadian Solar TOPBiHiKu7 620-650W
Canadian Solar TOPBiHiKu7 620-650W
Model NO:TOPBiHiKu7 620-650W
Cell Type: TOPCon Cells
Weight:34.5 kg (76.1 lbs)
Transport Package:Wooden Pallet and Carton Packing
Specification:2172*1303*33mm
Trademark:Canadian solar
Origin:China
sales1@artes-cn.com


MECHANICAL DATA
Cell Type TOPCon Cells
No. of Cells120*[2*(10*6)]
Dimensions2172*1303*33 mm (85.5 x 51.3 x 1.30 in)
Weight34.5 kg (76.1 lbs)
Front Glass2.0 mm heat strengthened glass with antireflective coating
Back Glass2.0 mm, Heat Strengthened Glass
FrameAnodized aluminium alloy
J-BoxIP68, 3 bypass diodes
Output Cables4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)620w625w630w635w640w645w650w
Power Tolerance0~±3%
Opt. Operating Voltage (Vmp)35.735.936.136.336.536.736.9
Opt. Operating Current (Imp)17.3717.4117.4617.517.5417.5817.6
Open Circuit Voltage (Voc)42.943.143.343.543.743.944.1
Short Circuit Current (Isc)18.3118.3618.4118.4618.5118.5618.61
Module Efficiency21.90%22.10%22.30%22.40%22.60%22.80%23.00%
