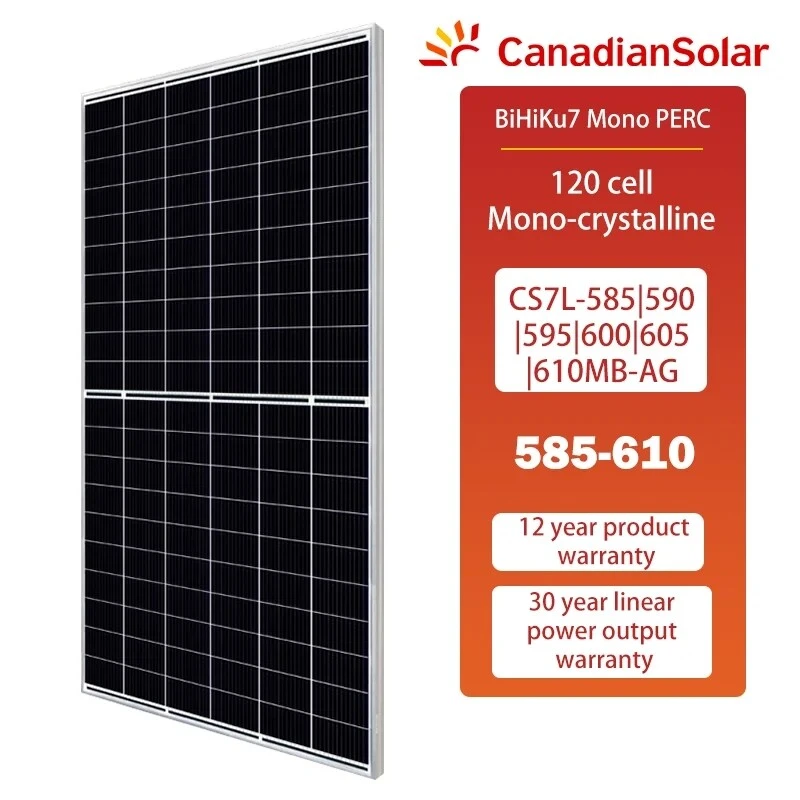

Canadian Solar BiHiKu7 580-610w
Canadian Solar BiHiKu7 580-610w
Model NO: BiHiKu7 580-610W
Cell Type: Mono-crystalline
Weight:34.5 kg (76.1 lbs)
Cables:4.0 mm² (IEC), 12 AWG (UL)
Transport Package:Wooden Pallet and Carton Packing
Specification:2172*1303*33mm
Trademark:Canadian solar
Origin:China
sales1@artes-cn.com


MECHANICAL DATA
Cell Type Mono-crystalline
Cell Arrangement120 [ 2*(10*6) ]
Dimensions2172*1303*33 mm (85.5*51.3*1.30 in)
Weight34.5 kg (76.1 lbs)
Front Glass2.0 mm heat strengthened glass with anti-reflective coating
Back Glass2.0 mm heat strengthened glass
FrameAnodized aluminium alloy
J-BoxIP68,3 bypass diodes
Cable4.0 mm² (IEC), 12 AWG (UL)
ConnectorT6 or MC4-EVO2 or MC4-EVO2A
Per Pallet33 pieces
Per Cotainer(40' HQ)594 pieces or 528 pieces

ELECTRICAL DATE(STC)
Nominal Max. Power (Pmax)580w585w590w595w600w605w610w
Power Tolerance0-10 w
Opt. Operating Voltage (Vmp)34.1 V34.3 V34.5 V34.7 V34.9 V35.1 V35.3 V
Opt. Operating Current (Imp)17.02 A17.06 A17.11 A17.15 A17.20 A17.25 A17.29 A
Open Circuit Voltage (Voc)40.5 V40.7 V40.9 V41.1 V41.3 V41.5 V41.7 V
Short Circuit Current (Isc)18.27 A18.32 A18.37 A18.42 A18.47 A18.52 A18.57 A
Module Efficiency20.50%20.70%20.80%21.00%21.20%21.40%21.60%
